Window Type
SWH-21003 / SWHT3-27004 / SPWHT3-27004

SWH-21003



SWHT3-27004

SPWHT3-27004



















Model No. Function COMPRESSOR Net Dimensions (mm)
40'HQ Loading
SWH-21003
Cool & Heat
HITACHI
660〜640〜430
235
SWHT3-27004 Cool & Heat PANASONIC
680〜760〜430
175
SPWHT3-27004 Cool & Heat TECUMSEH
680〜760〜430
175
P : Reciprocating  - T3 : Tropical


Specifications

Model No.
SWH-21003 SWHT3-27004 SPWHT3-27004
EER (BTU/W.Hr): 8-12 8-12 8-12
Noise Level (dB (A)): 40-50 40-50 40-50
Air Volume(m3/Hr.): 800-900 900-1000 900-1000
Application Area (m2): 21-31 26-40 26-40
N.W. (KG): 59 68 68

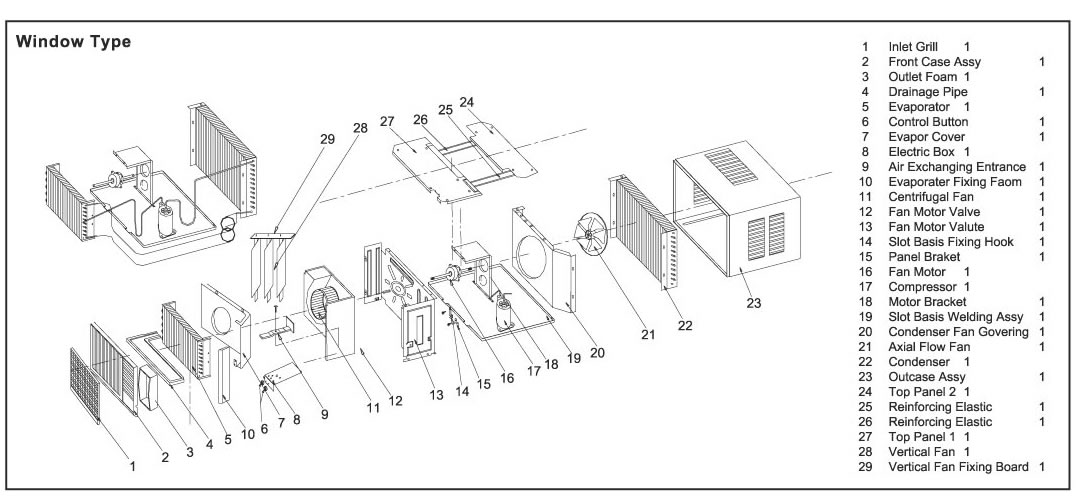

Exploded View
